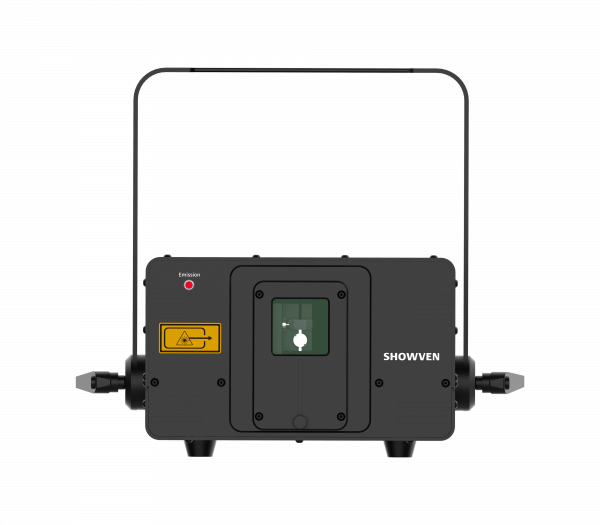

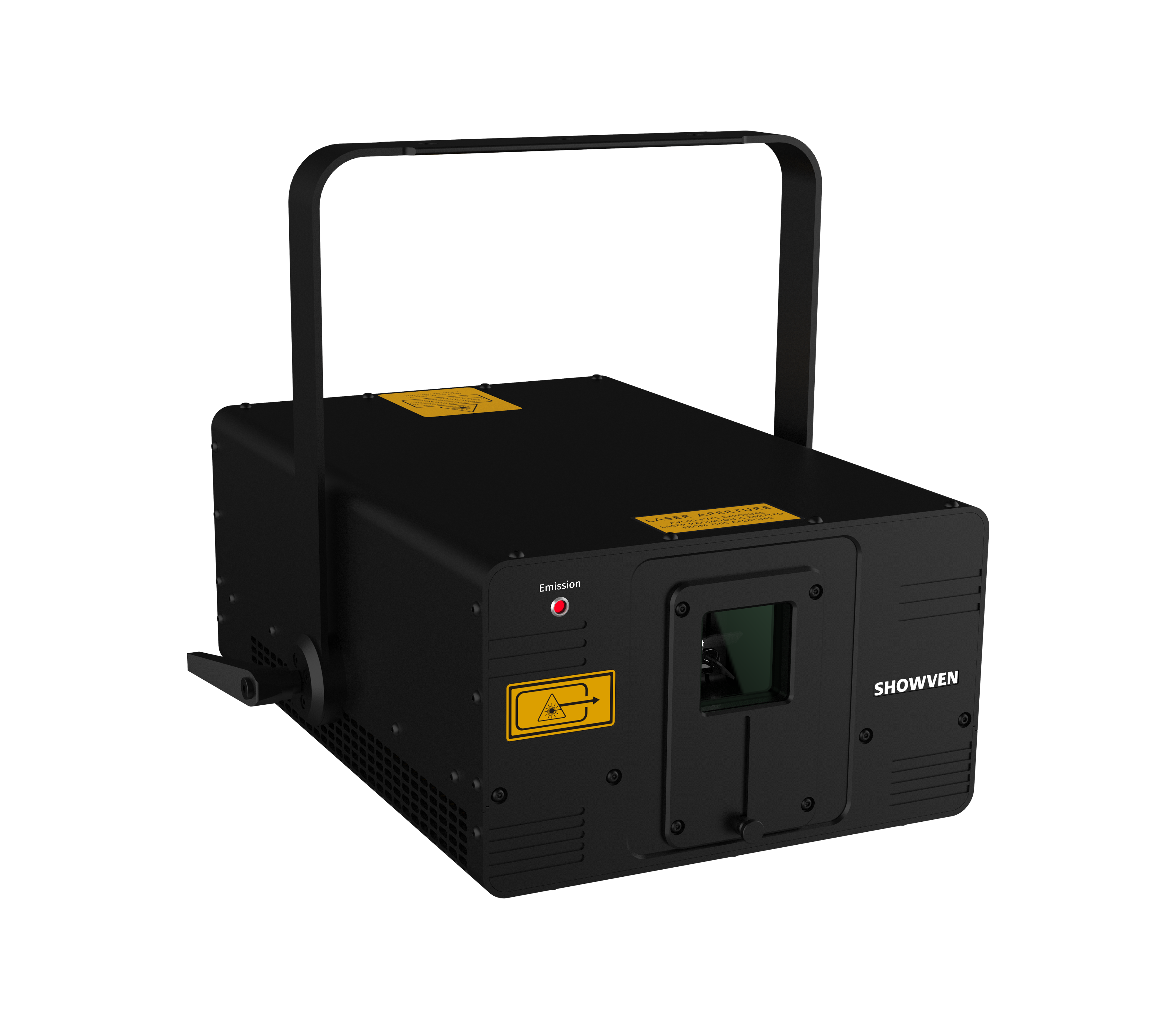

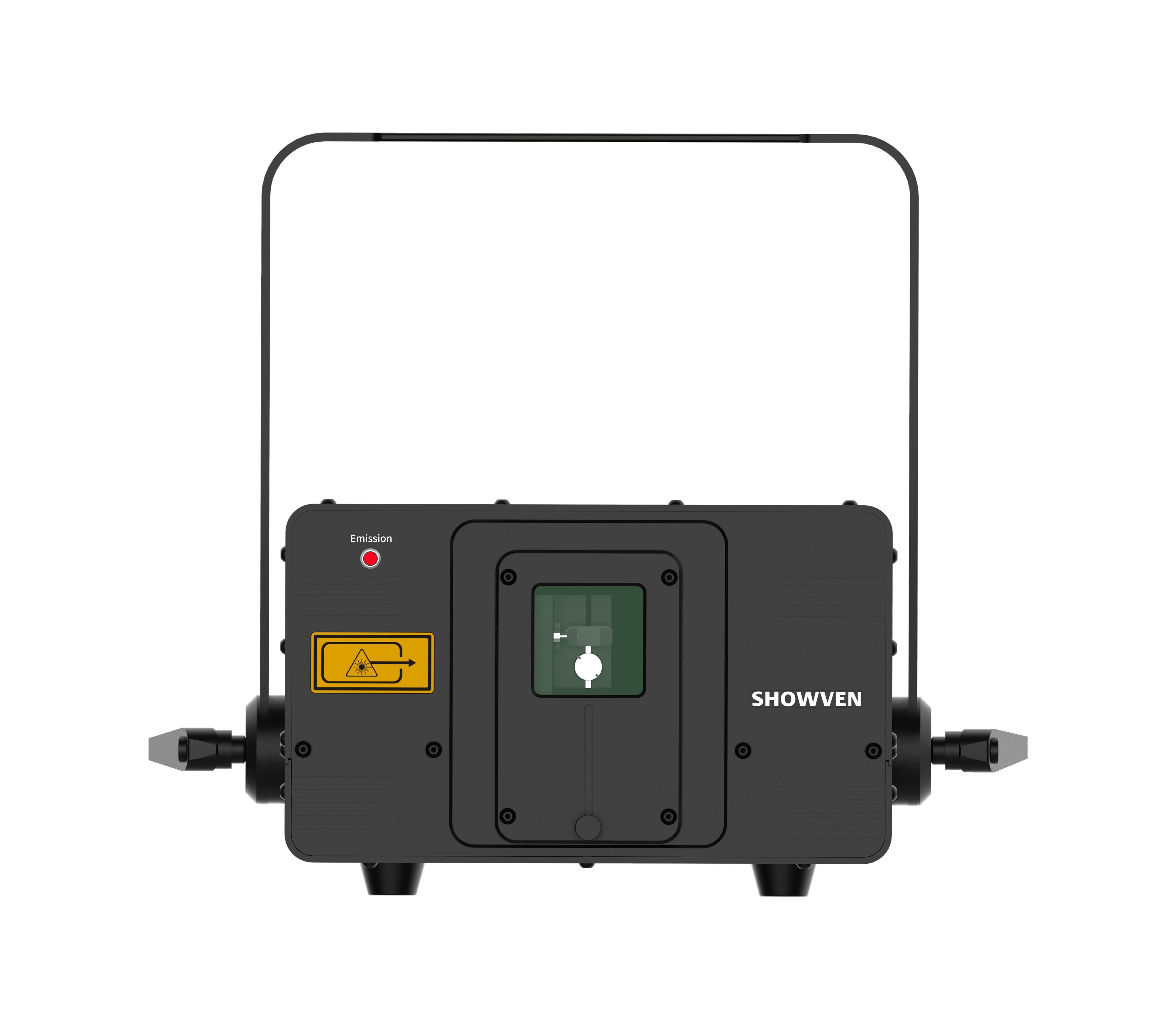

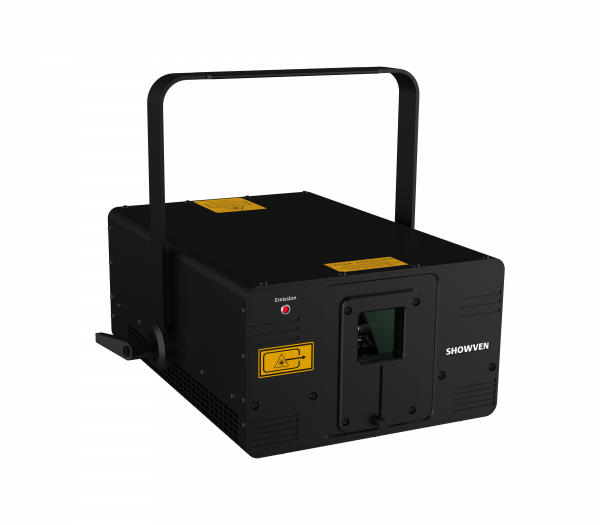

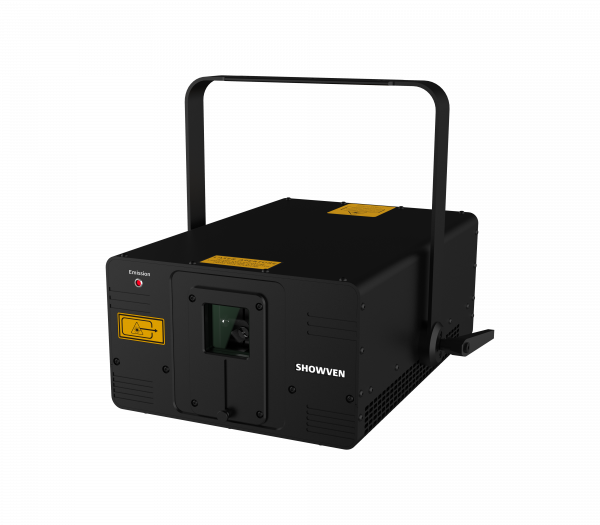

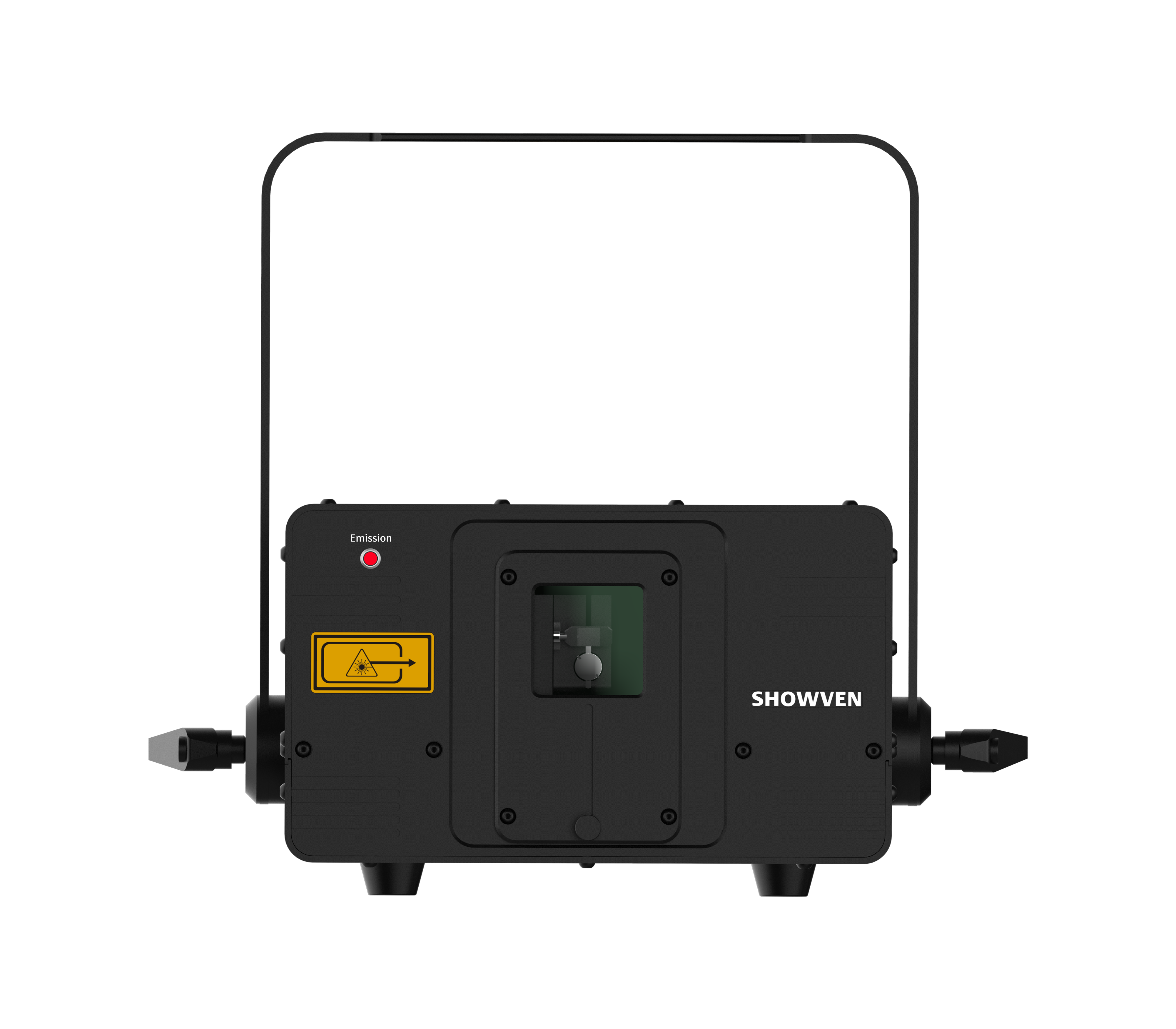

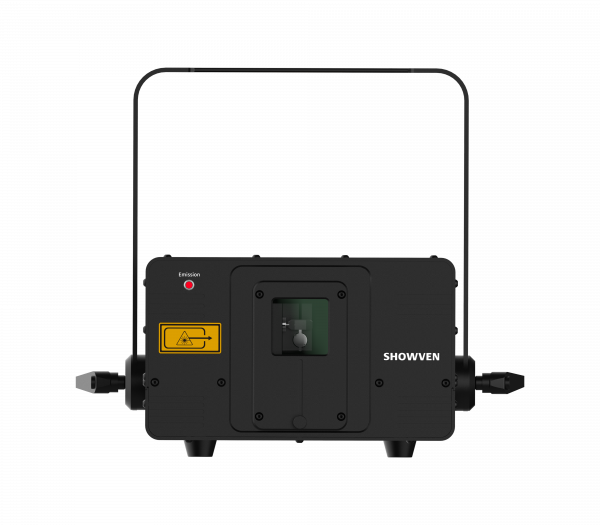

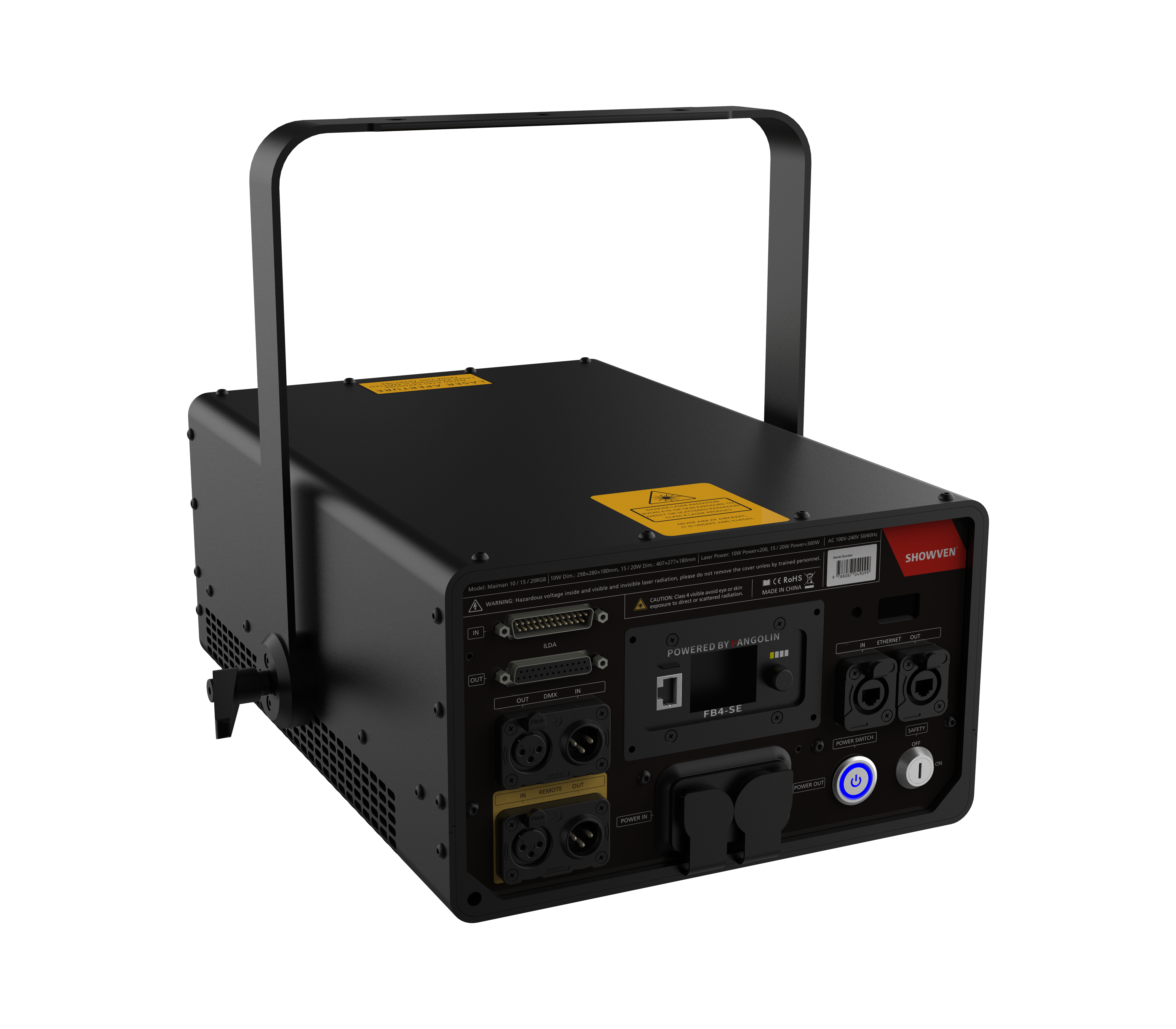

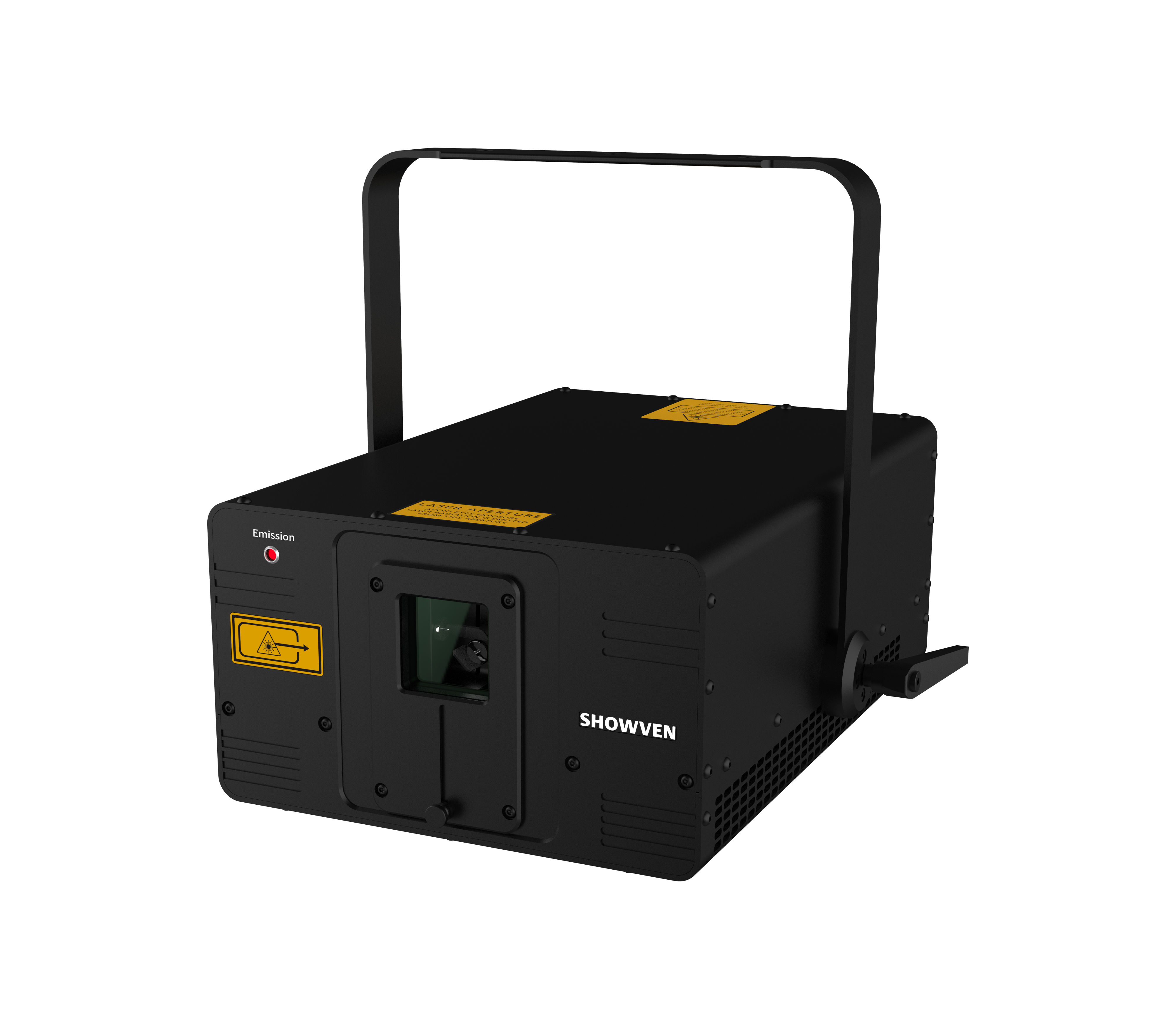

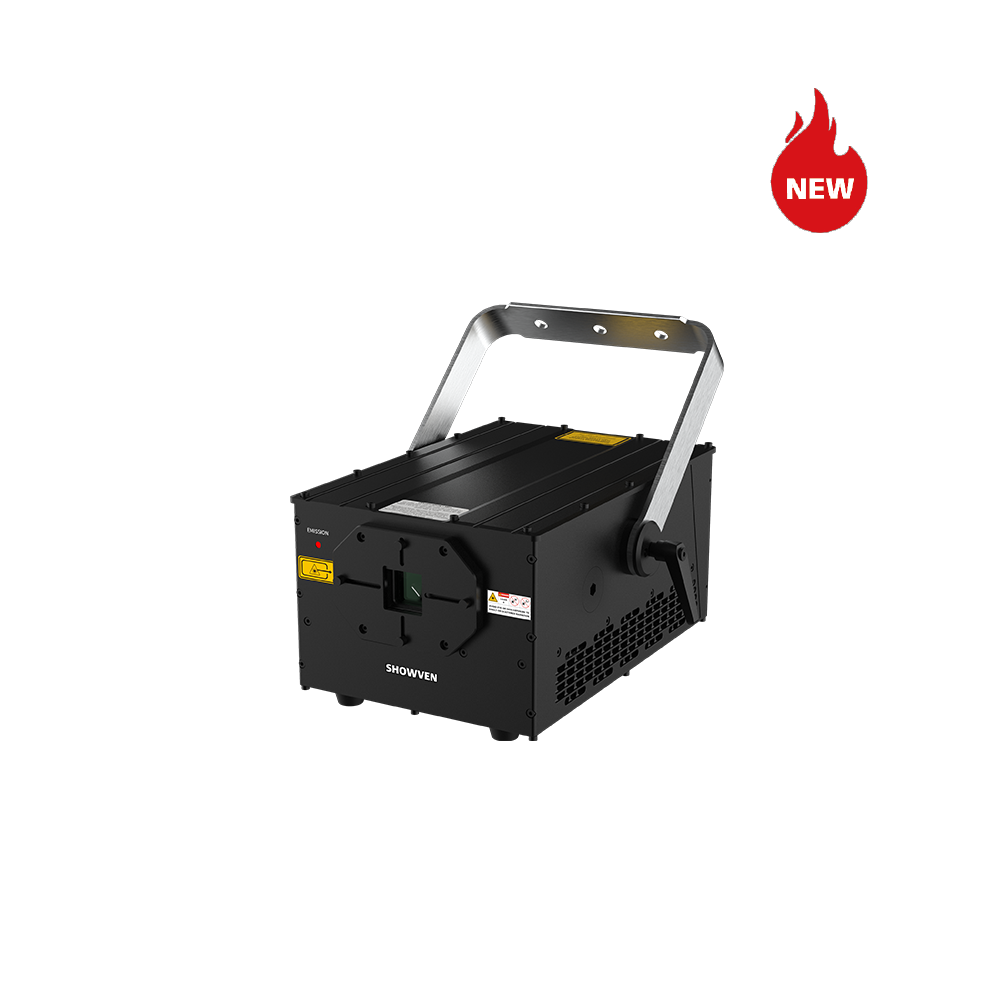

SHOWVEN® Maiman 15 full-colour RGB laser is a new product based on our Maiman platform. It is with double-layer structure design, IP65 rated enclosure. Equipped with safety switch key, remote E-stop function, scan-fail safety etc. safety related configurations ensure the safety and controllability of laser use to the greatest extent.
FEATURES
New technologies empowers Showven’s second-generation laser products.
RGB+TEC full digital driver
Enhanced TEC structure design
Completely isolation of cold and hot sides, more efficient cooling effect to the laser compartment, ensuring cooling temperature inside laser module even in an ambient temp. of up to 45 degrees, greatly extends the service life of LD.
Three layer structure design (new Maiman 30/40)
Safety features
Optical features
Other features
VIDEO
\ Power Supply: AC100-240V, 50/60Hz
\ Output: 15W
\ R module: 4W/LD Mitsubishi 638nm
\ G module: 5W/LD Nichia 520nm
\ B module: 6W/LD Osram 450nm
\ Scanning System: AT50LB(+30°40K)
\ Beam Size: 5 ×6.5mm
\ Beam Divergence: <1.1mrad
\ Analogue modulation: 100K, Analog/TTL
\ IP level: IP65
\ Cooling System: TEC
\ Work Temp.: -20-40℃
\ Weight: 12kg
\ Dimension: 396×270×180mm

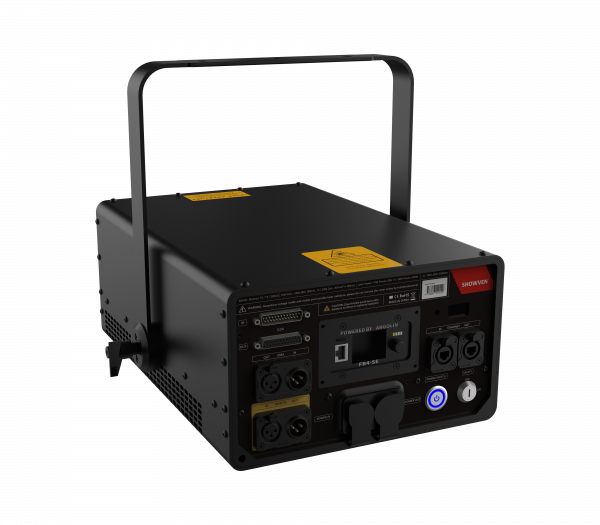

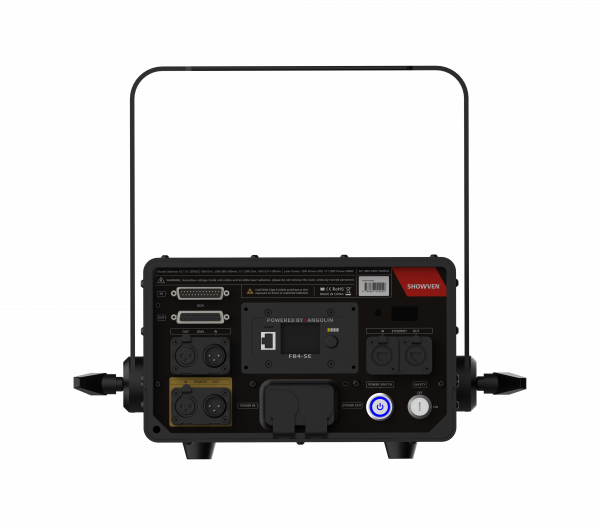

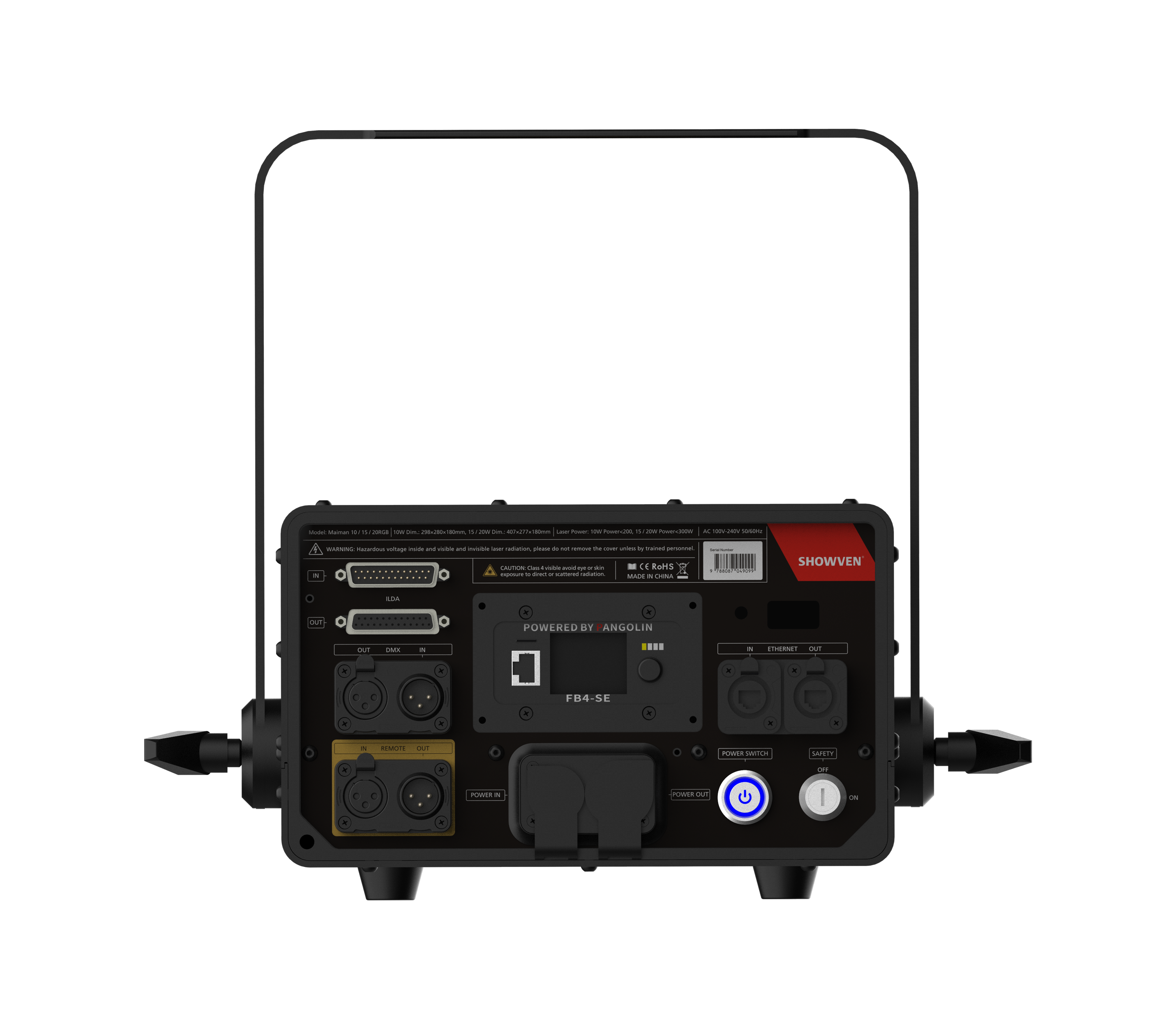

\ System Control: Ethernet, DMX, ILDA, Auto, SD card, Sound,FB4(optional)
\ Compliant with: EN60825-1:2014+A11:2021
\ Safety Features: Safety Switch Key, Remote Emergency Stop System (can be connected in daisy chain), scan-fail safety.
