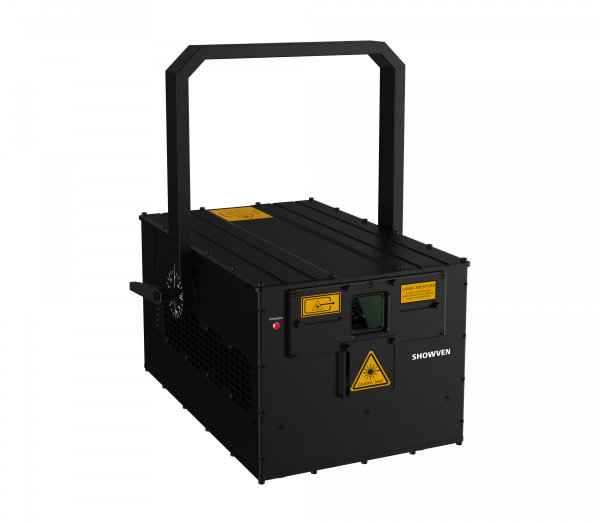

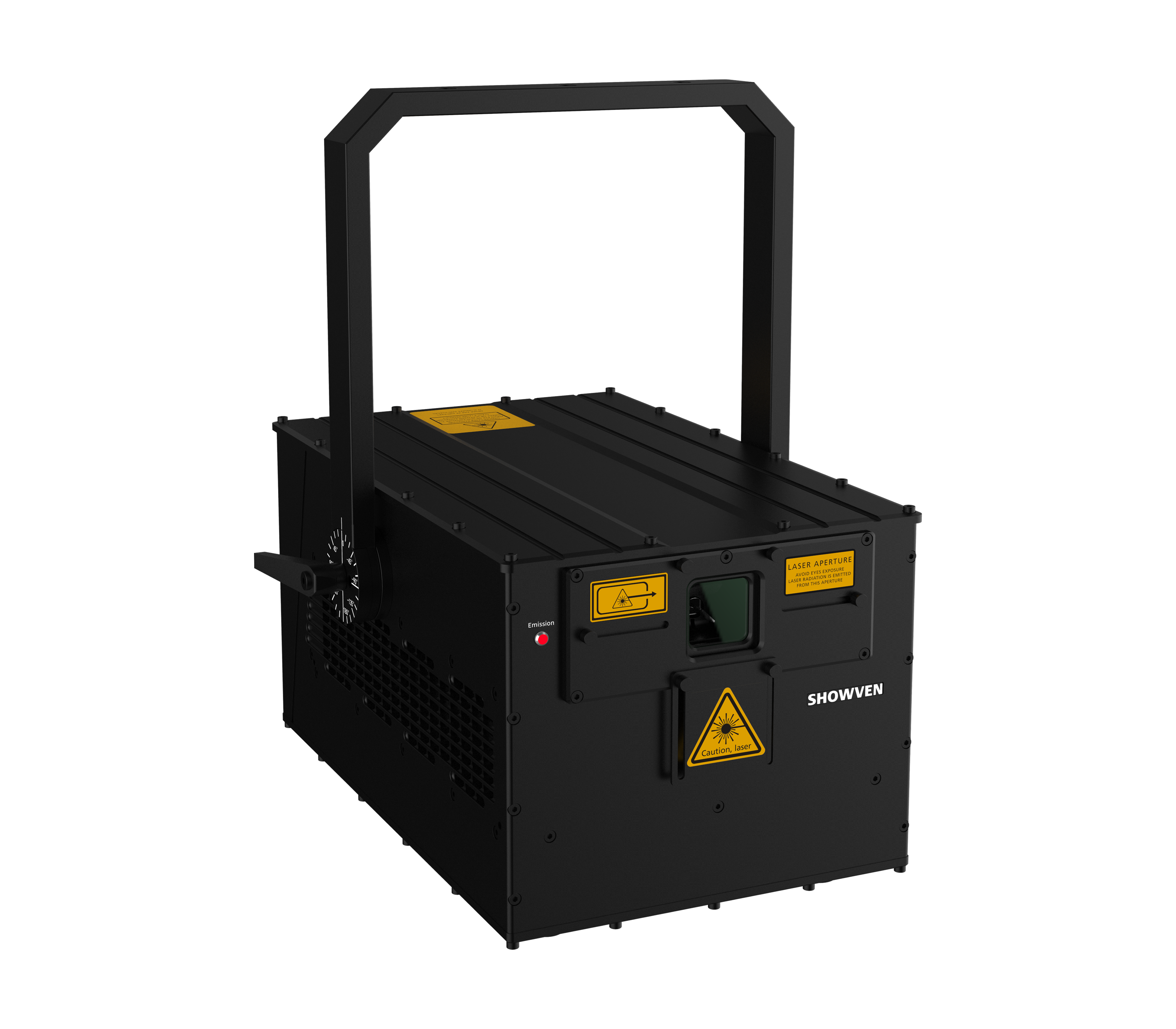

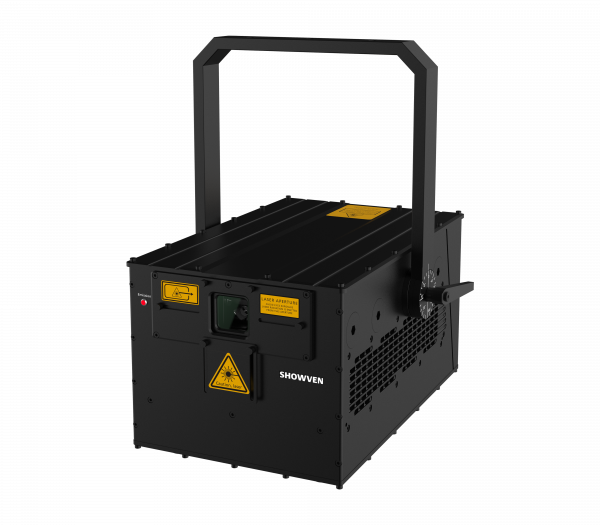

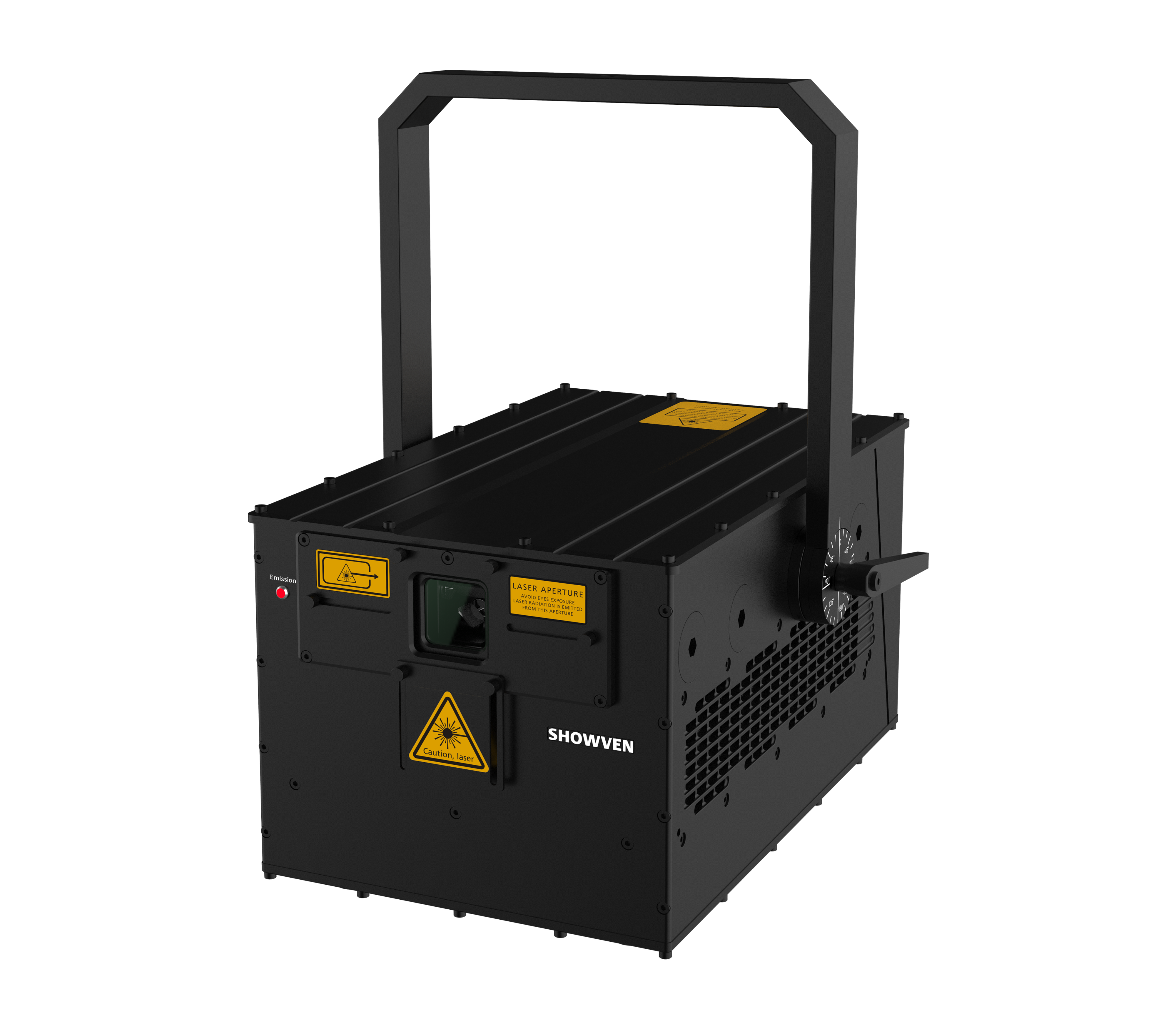

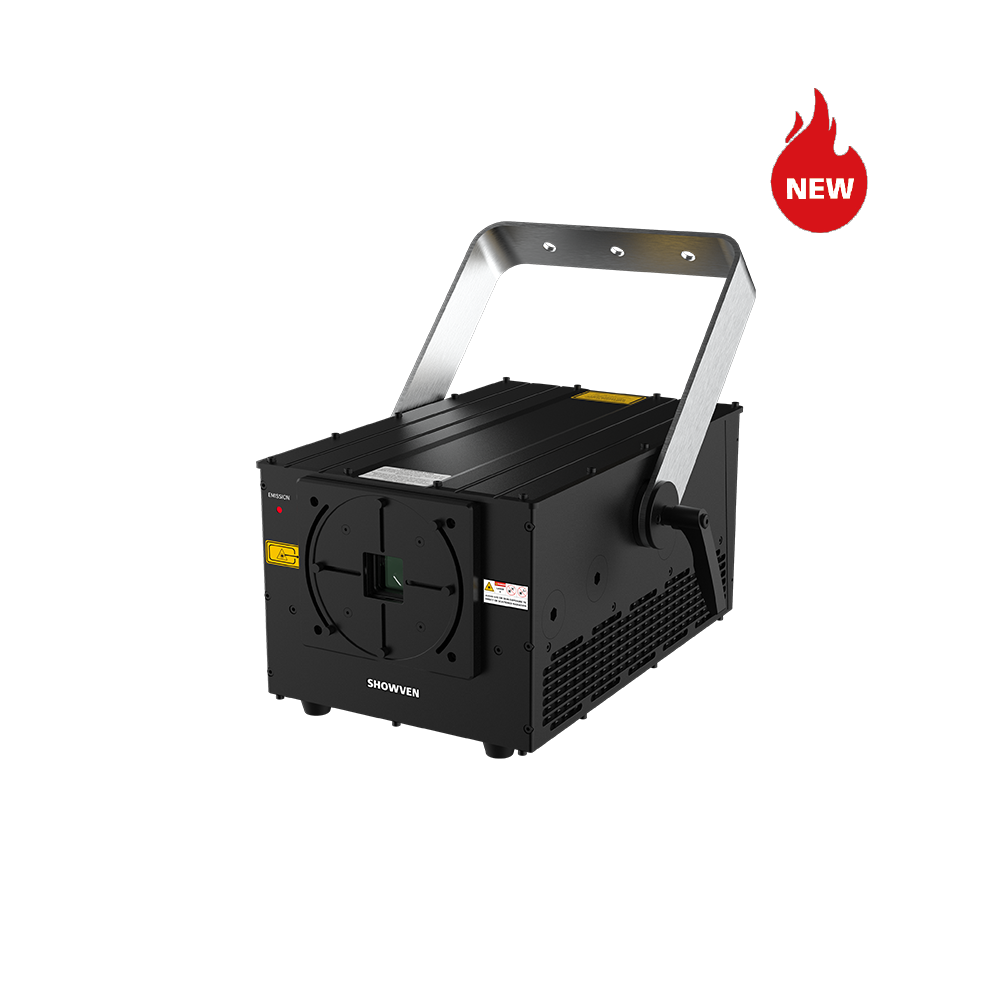

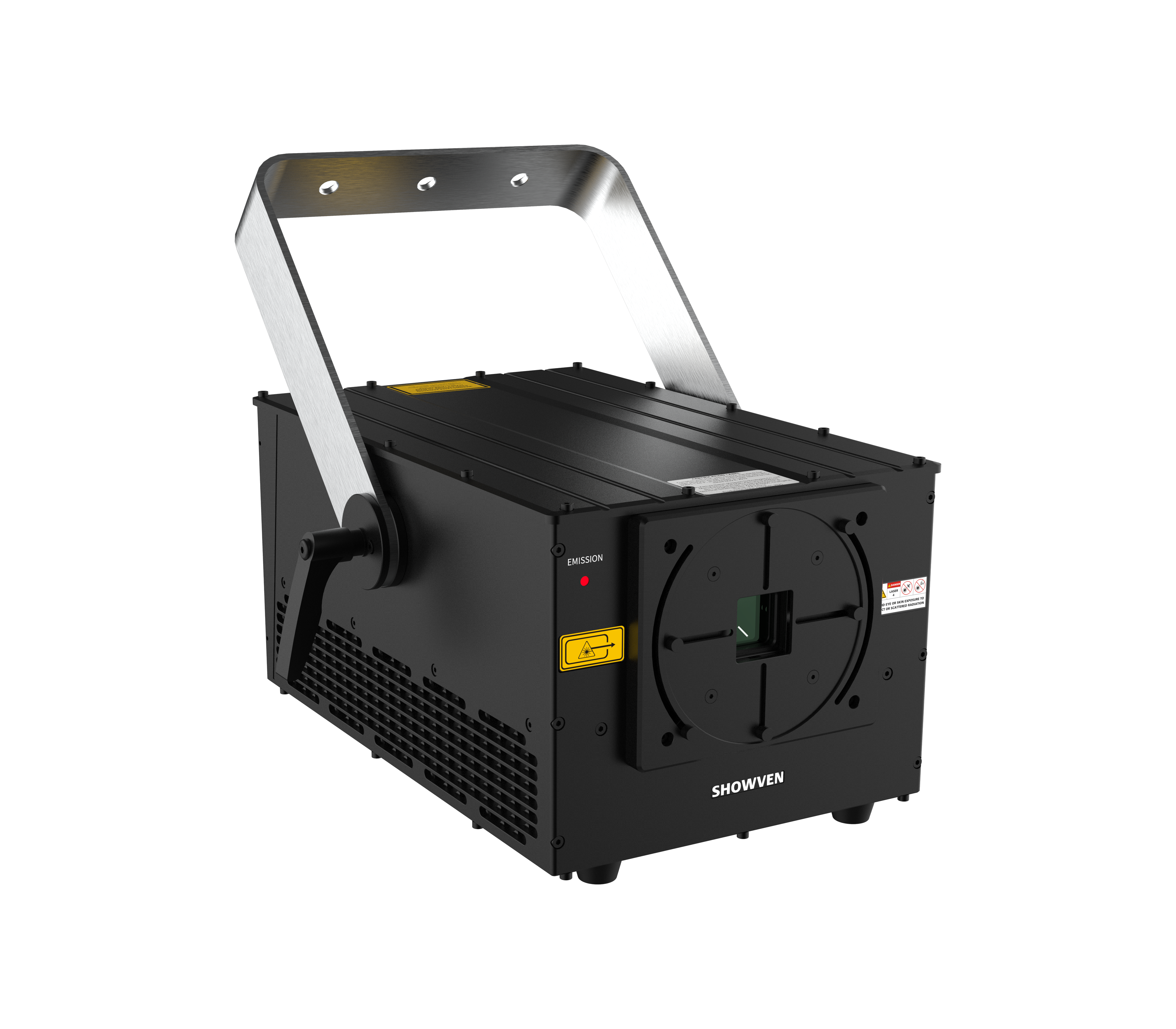

SHOWVEN® series full-colour RGB lasers are launched based on our more than 4 years in-depth laser market research. We aimed to bring quality, premium design and cost-effective laser system to the global market. Our Maiman series full-colour RGB lasers with double-layer structure design, IP65 rated enclosure. Pure diode light source guarantee higher reliability and smaller beam divergence angle. Equipped with safety switch key, remote E-stop function etc. safety configurations ensure the safety and controllability of laser use to the greatest extent. To extend the service life of our laser we equipped with PWM fan control, noise reduction design, realtime temperature monitoring and over-temperature protection function.
FEATURES
New technologies empowers Showven’s second-generation laser products.
RGB+TEC full digital driver
Enhanced TEC structure design
Completely isolation of cold and hot sides, more efficient cooling effect to the laser compartment, ensuring cooling temperature inside laser module even in an ambient temp. of up to 45 degrees, greatly extends the service life of LD.
Three layer structure design (new Maiman 30/40)
Safety features
Optical features
Other features
VIDEO
\ Power Supply: AC100-240V 50/60Hz
\ Output (max): 30W
\ R module: 8W/LD Mitsubishi 638nm
\ G module: 10W/LD Nichia 520nm
\ B module: 12W/LD Osram 450nm
\ Scanning System: AT50iB(+30°35K)
\ Beam Size: 6×7mm
\ Beam Divergence: <1.2mrad(full angle)
\ Analogue modulation: 100K Analog/TTL
\ IP level: IP65
\ Cooling System: TEC cooling
\ Work Temp.: -20-40℃
\ Weight: 27kg
\ Dimension: 495×471×226mm

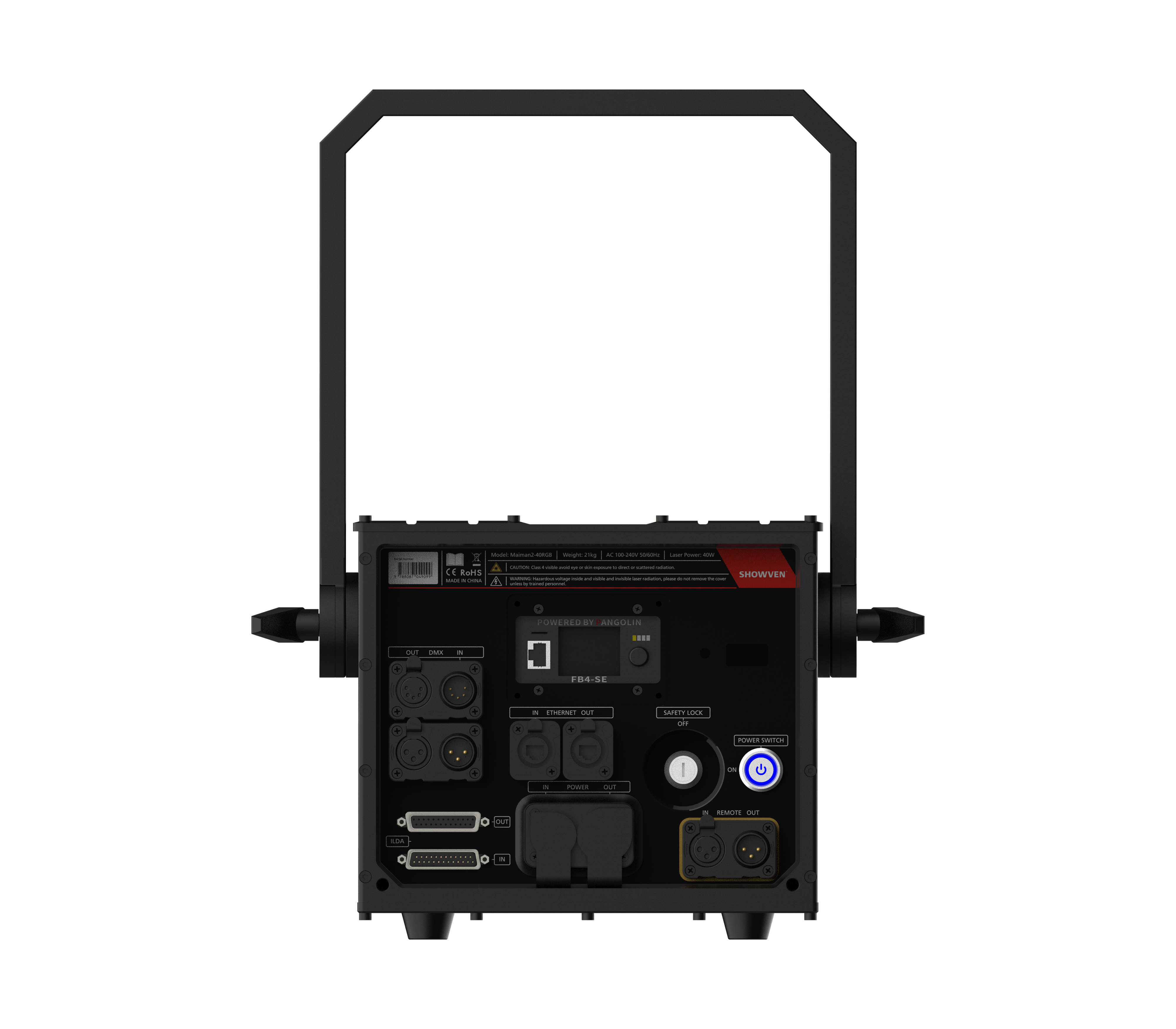

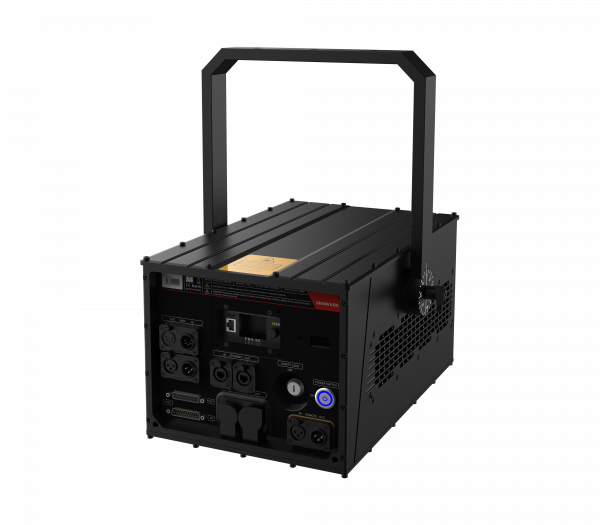

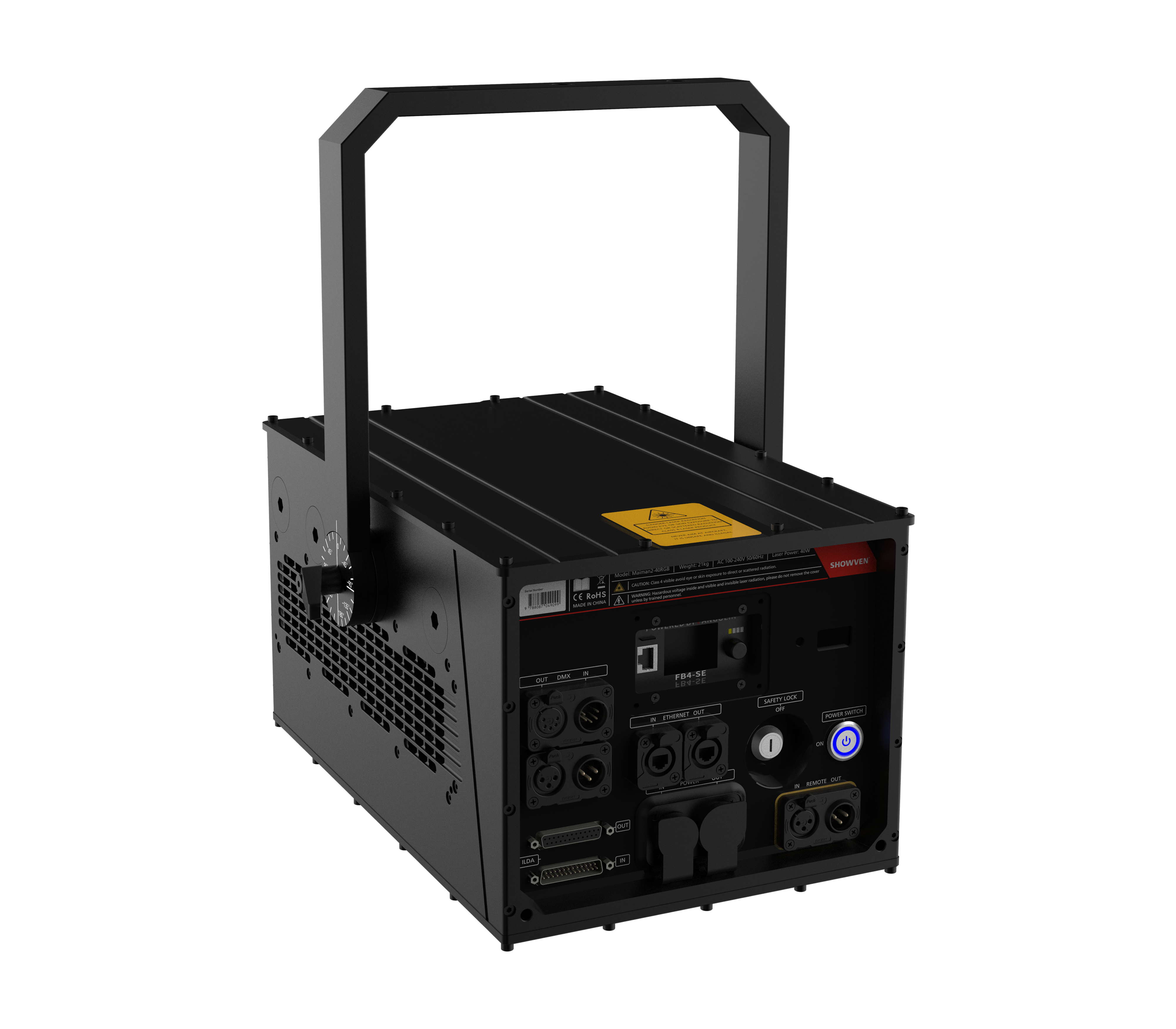

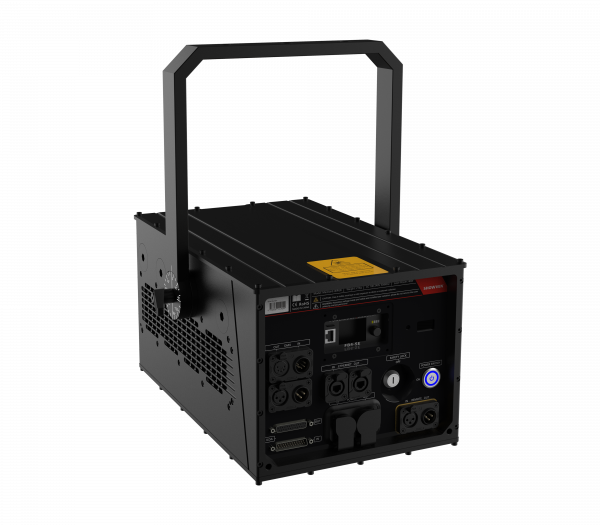

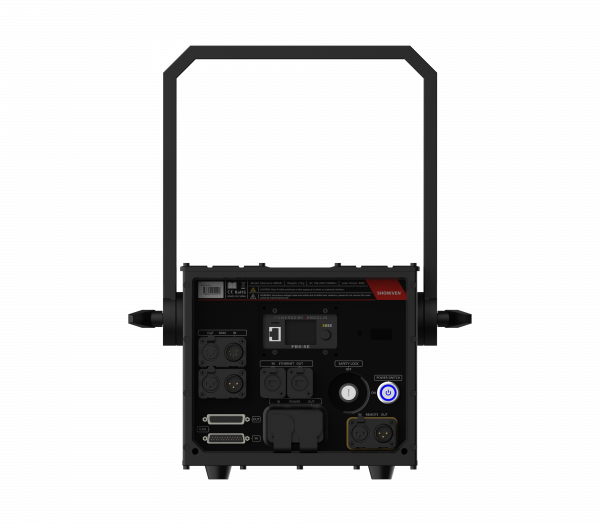

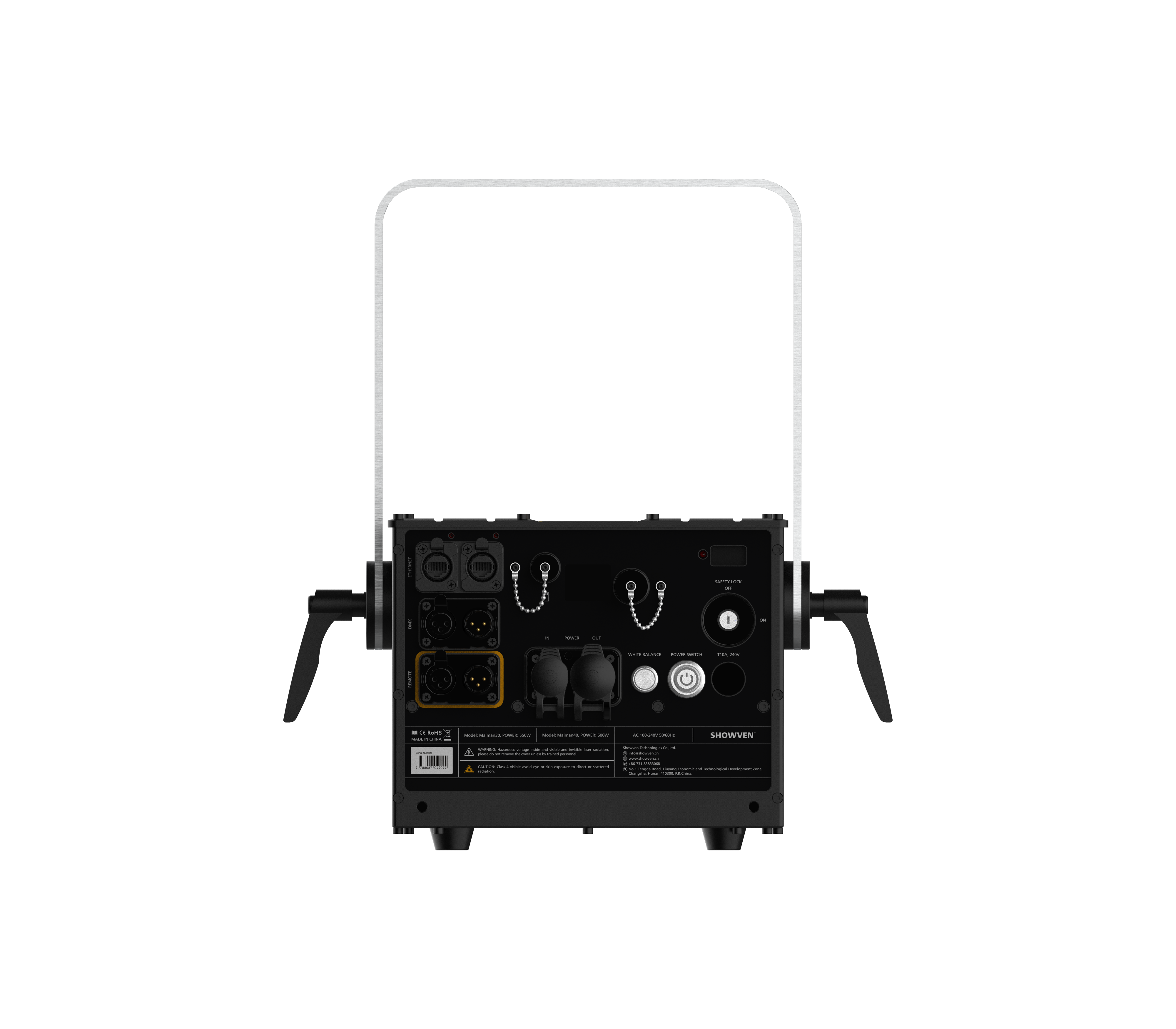

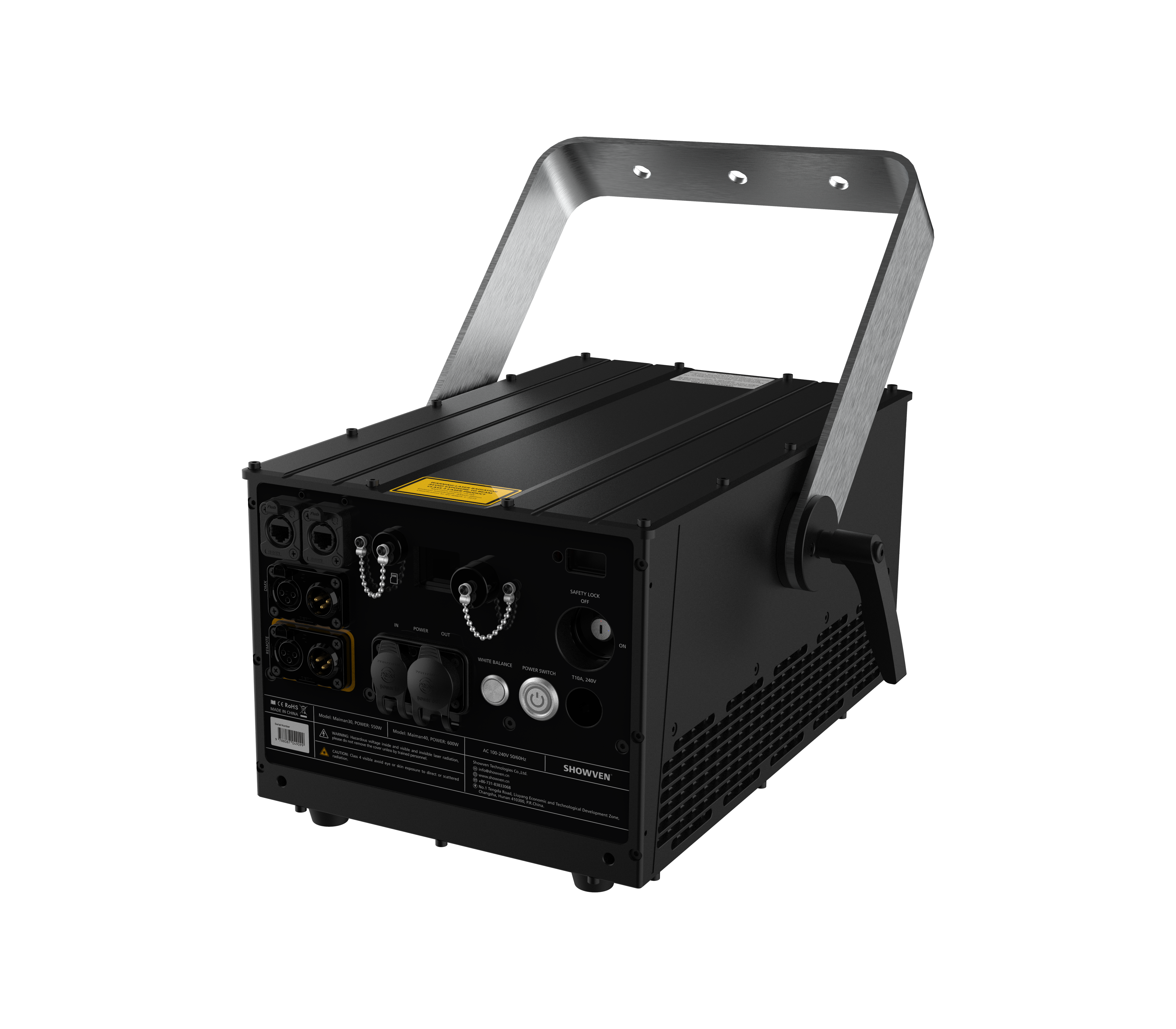

\ System Control: FB4, Ethernet, DMX, ILDA, Auto, SD card, Sound
\ Compliant with: EN60825-1:2014+A11:2021
\ Safety Features: Safety Switch Key, Remote Emergency Stop System (can be connected in daisy chain), scan-fail safety etc.
